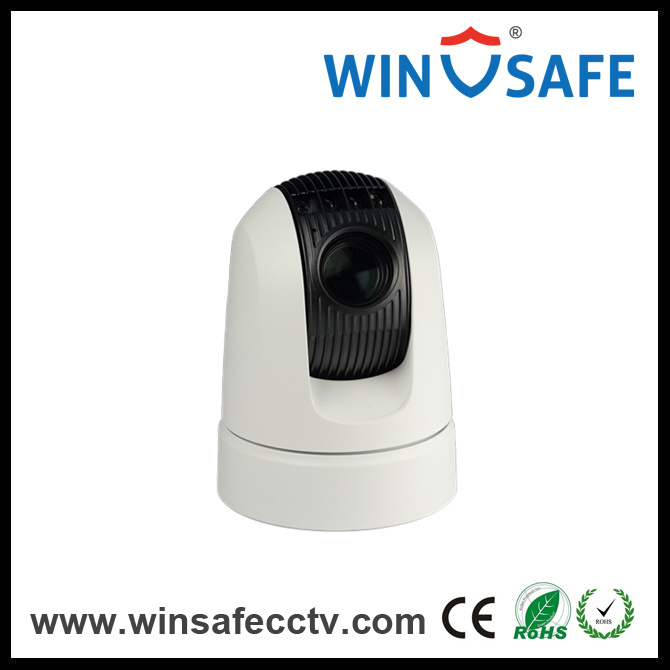

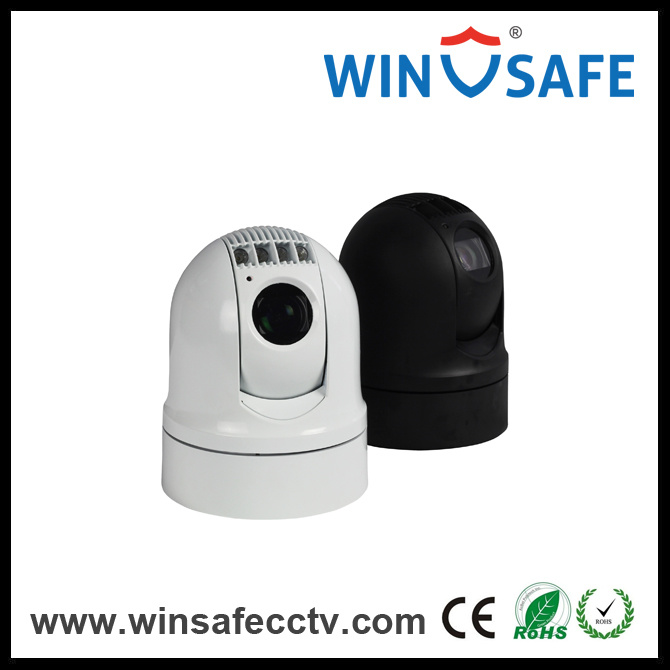

Wireless security camera system pelco ptz hd camera
2Megapixel 20X Optical Zoom Weather Proof infrared Vehicle Security CCTV Camera/CAHC-SU20
![Wireless CCTV Mobile Security Camera System Anolog PTZ HD SDI Camera](https://img2.grofrom.com/selshop-online/987d132d87d3ade2cbbad223172d707c.webp)
Features
2.2MP HD Sensor, supporting 1080p, 1080i, 720p and CVBS output, full digital video technology;
HD-SDI and CVBS output simutaneous;
HD-SDI for transfer of HD video, CVBS, power and RS-485;
Efficient 60M IR Lighting, excellent night visioperformance;
Magnesium Alloy front cover;
Portable with compact design & high reliability;
Advanced mechanical system with high speed and free-maintenance motor design;
Optional Damping system;
Digital Image Stabilization(DIS);
WDR supported;
Built in Defogger;
Image Flip supported;
Soft address supported;
Self-adaption of Protocol & Baud rate;
Wide range of voltage input(10.8-28V);
Auto power-off with low power supply;
Random Scan, Auto Scan, Frame Scan supported.
System Diagram
![Wireless CCTV Mobile Security Camera System Anolog PTZ HD SDI Camera](https://img2.grofrom.com/selshop-online/e4f61584df2935a9d0f9345688be91c9.webp)
![Wireless CCTV Mobile Security Camera System Anolog PTZ HD SDI Camera](https://img2.grofrom.com/selshop-online/e148d355662e97714a84acc8a65e8390.webp)
Introduction
The portable rugged PTZ camera is designed for practical and extreme applications, such as military field surveillance, security outdoor evidencing etc. It is featured as weather-proof, anti-vibration and anti-corrosion
It can be deployed into a mobile surveillance system, consisting of ptz camera, vehicle video recorder, monitor, control system and 3G wireless video transmitter. Meanwhile a remote controller is available for the user inside the vehicle to control the camera outside.
Best Security Surveillance CCTV Camera PTZ Camera IP Camera Video Conference camera NVR Set/NVR Kits/CCTV System from Winsafe, 100% Factory Price!
Welcome inquiry for further details!
Our Advantages
High quality products
Full selection range
Two years warranty/free maintainance
OEM & ODM Service
CE, FCC, RoHs Certified
Payment: T/T, Paypal, Western Union D/P L/C
3-5 daysprompt delivery
Welcome sample order for testing
Excellent after-sales services
Experienced sales team
Technical Date | |||
Camera | |||
Image Sensor | 1/3 inch, PS CMOS | ||
Effectie Pixel | 1944(H) x 1092(V) | ||
Video Output | HD:1080p30/1080p25/1080i60/1080i50/720p60/720p50 SD:PAL/NTSC | ||
Min Illumination | 1.5 Lux/F1.6 (50 IRE): Color 0.1 Lux/F1.6 (50 IRE): B/W | ||
White Balance | ATW / AWC / INDOOR / OUTDOOR / Manual | ||
Focus | Auto / Manual | ||
Exposure | Auto / Manual | ||
S/N Ratio | 50 dB | ||
BLC | On / Off | ||
WDR | On / Off | ||
Image Stabilization | On / Off | ||
Digital Noise Reduction | On / Off | ||
Day/Night | Auto / Manual | ||
LENS | |||
Optical Zoom | 20X | ||
Digital Zoom | 16X | ||
Focal | f = 4.45 to 89mm | ||
IRIS | F1.6 - F2.9 | ||
Angle Field of View | H: Appr.55.56°(Wide) to 3.10°(Tele) V: Appr.43.32°(Wide) to 2.34°(Tele) | ||
PTZ | |||
Pan Range | 360° Continuous | ||
Pan Speed | Control speed: 0.05° - 120°/s, adjustable; Preset speed:150°/s | ||
Tilt Range | -15° - 90°(Auto Flip) | ||
Tilt Speed | Control Speed: 0.03° - 90°/s, adjustable; Preset speed:120°/s | ||
Preset | 256 | ||
Preset Precision | ± 0.05° | ||
Light | |||
IR Wave Lenth | 850nm/940nm | ||
Range | 60M/50M | ||
Switch | Auto / Manual | ||
General | |||
OSD Language | English | ||
Comm.Interface | RS-485 | ||
Video Interface | HD:HD-SDI / SD : CVBS | ||
Protocol | Pelco-P / Pelco-D | ||
Baud Rate | 2400bps,4800pbs,9600bps,(self-adaptive) | ||
Address | 0 - 255 | ||
Voltage | DC10.8 - 28V | ||
Power | 15W(Standby) 30W (Aux lights On, degogger ON, and P/T running continuously) | ||
Working Temperature | - 35- + 65 | ||
IP Code | IP66, TVS, Anti-surge | ||
Mounting Type | Magnet / Fixed / Fixed with Damper | ||
Dimensions | 130(mm) 173(mm) w/o damper 140(mm) 1999mm) with damper | ||
Weight | Fixed Mount:1.6kg Magnet Mount:1.7kg Fixed with Damper:2.1kg |
