Visible light long distance telephoto fog laser HD PTZ camera

Visible Light Long - Distance Telephoto Fog HD PTZ CameraFeatures: 1. 2.0mp 1 / 1.8 "F1.6 CMOS ICR star day and night HD network camera2. Large diameter high-definition fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset3. Using single-chip semiconductor laser light, photoelectric conversion r

Featured Products

Visible Light Long - Distance Telephoto Fog HD PTZ Camera
Visible Light Long - Distance Telephoto Fog Laser HD PTZ Camera
Visible Light Long - Distance Telephoto Fog Laser HD PTZ Camera
Visible Light Long - Distance Telephoto Fog Laser HD PTZ Camera
Visible Light Long - Distance Telephoto Fog Laser HD PTZ Camera
Visible Light Long - Distance Telephoto Fog Laser HD PTZ Camera



Features:


1. 2.0mp 1 / 1.8 "F1.6 CMOS ICR star day and night HD network camera
2. Large diameter high-definition fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset
3. Using single-chip semiconductor laser light, photoelectric conversion rate, high light energy utilization, synchronous zoom, lighting angle continuously adjustable, higher reliability
4. PTZ adopts the design of large transmission ratio of turbine worm, metal structure, copper gear wheel, large torque, strong carrying capacity, high power self-locking ability after power failure
5. PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance, strong earthquake resistance, high stability, ultra low speed operation
6. PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather.
7. Advanced electromagnetic compatibility test, using triple lightning protection technology

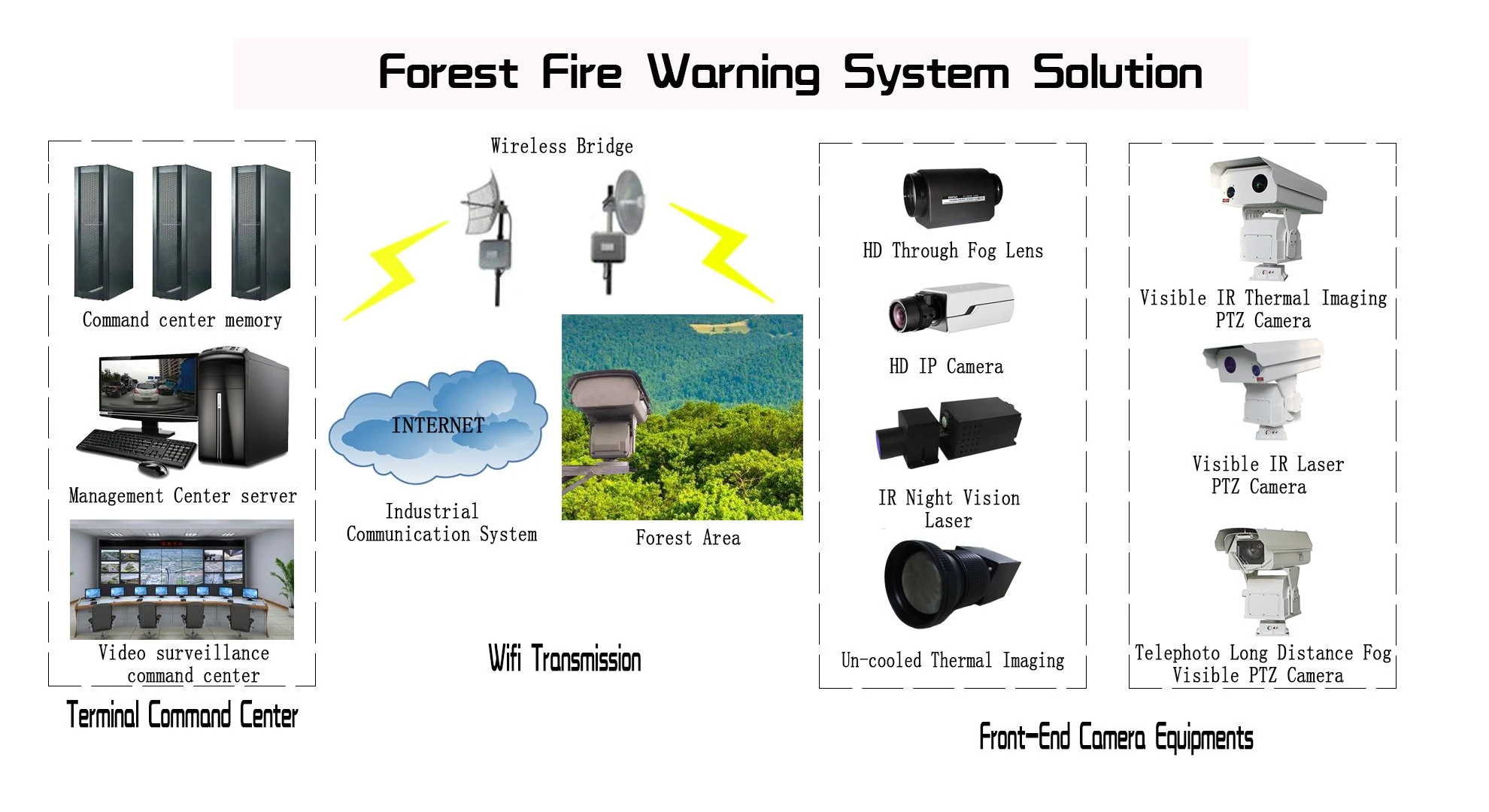

Application: Forest fire prevention, safe city, prison, warehouse, oil field oil depot, long pipeline, large factory, mining, freight yard, borderline, maritime fishery, ecological protection area, reservoir, military base.
Parameter:

Visible light long - distance telephoto fog HD PTZ camera
MODELSHJ-TX30-HDSHJ-TX35-HDSHJ-TX40-HD
Telephoto fog lensImage1/1.8"
InterfaceC
Visible light monitoring distance2KM3KM5KM
 8-240mm10-360mm14-500mm
Zoom30x36x36x
Aperature(F)F1.7-F30F1.9-F30F2.9-F30
Zoom functionElectric zoom
Aperature functionAuto aperature(DC driving)
Through fogThrough fog image
HD CameraImage sensor1/1.8" Progressive Scan CMOS
Mini illuminationColor:0.002 Lux @(F1.2,AGC ON) White black:0.0002Lux @(F1.2,AGC ON)
Lens interfaceC/CS interface
Auto aperatureDC driving
Day/nightICR IR Filter
Image sensor1920 × 1080
Image frame rate50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720)        60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)
Day/nightICR Infrared filter automatic switching
Image settingSaturation, brightness, contrast, sharpness adjustable
Through fogSupport
Special functionWide dynamic light suppression / 3D digital noise reduction / backlight compensation / electronic shutter auto iris / slow shutter
Network transmission compression methodVideo compression standardH.265 / H.264 / MJPEG
H.265 codeMain Profile
H.264 codeBaseLine Profile / Main Profile / High Profile
Compressed output bit rate32 Kbps~16Mbps
Storage functionSupport Micro SD/SDHC/SDXC card(128G)
Broken network local storage, NAS (NFS, SMB / CIFS support)
Interface protocolONVIF,PSIA,CGI,ISAPI,GB28181
PTZ protocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
PTZ parameterPTZ loadTop load 22KGTop load 35KGTop load 50KG
Pan manual control speed0.1°/S -40°/S0.1°/S -20°/S0.1°/S -20°/S
Tilt manual control speed0.1°/S -15°/S0.1°/S -10°/S0.1°/S -10°/S
Pan angle+40°~-75°+40°~-45°+40°~-45°
Tilt angle360° contiously rotation
Preset256 pcs preset position
Cruising8 channels
Auto scanning8 channels
Automatic homing functionSupport
Patrol4 channels
Auxiliary switch2 groups
Control wayRS485,rotation angle return angle and angle control can be realized
General specificationRelative humidity90%
IP gradeIP66
Working temperature-40 ºC - 55ºC
Power supplyAC24V/DC24V
Consumption≤100W

Visible Light Long - Distance Telephoto Fog Laser HD PTZ Camera
