Drone manufacturer drones are equipped with 30x HD zoom cameras for surveillance

KWT-X6L Product FeaturesCarbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time.Innovative upturned arm design for flying stability and strength, ensuring wind tolerance up to 14 m/s.Able to fly at elevation of 5000m (16500 ft).Full HD 1080i/P real time v

Featured Products

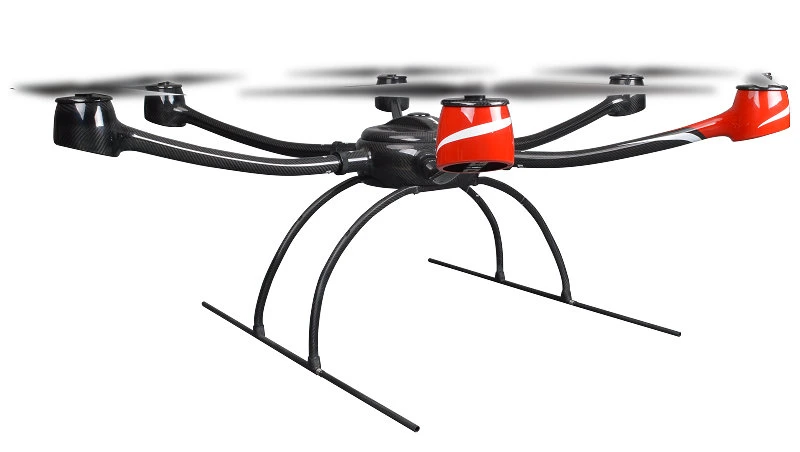

KWT-X6L
Uav Drone Manufacturer Unmanned Aerial Vehicles with 30 Times HD Zoom Camera for Surveillance
Uav Drone Manufacturer Unmanned Aerial Vehicles with 30 Times HD Zoom Camera for Surveillance

Product Features
  • Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time.
  • Innovative upturned arm design for flying stability and strength, ensuring wind tolerance up to 14 m/s.
  • Able to fly at elevation of 5000m (16500 ft).
  • Full HD 1080i/P real time video transmission.
  • Detachable structure, get ready to fly within 5 minutes.
  • Highly integrated rainproof gimbal unit with good rain performance.
  • Intelligent flying control system, supports manual precision control and autonomous flight.
  • Technical Parameters
    Diagonal wheelbase1600 mm
    Standard take-off weight9.8 kg
    Max take-off weight14.4 kg
    Max payload weight≥5 kg
    Flight time≥65 min (@9.8kg)
    Wind loading rating14 m/s
    Max flight speed15 m/s
    Relative flight speed1000 m
    Max working altitude5000 m
    GPS position accuracyvertical: ±1.5 m
    horizontal: ±2 m
    Remote control distance7 km(up to the environment)
    GS control distance10 km
    Center Frame Packing Case Dimensions1150 x 440 x 500 mm
    Frame Arm Packing Case Dimensions1120 x 540 x 380 mm

Technical parameter
Self-stabilizing
Uav Drone Manufacturer Unmanned Aerial Vehicles with 30 Times HD Zoom Camera for Surveillance
Working voltageDC12+/-0.5V
Working temp-10~50ºC
Pitch motion  range-90°~90°
Roll motion  range-85°~85°
Level motion range-150°~150°
Angle jitterPitch, roll: 0.02°
Level: 0.03°
30 times HD camera technical parameters
Sensor1/3 inch, 3 million pixels CMOS
Video output resolutionMax: 1920*1080p/60
Len30 times optical zoom
Focus rangef=4.5~135mm
Fast focusFocus time <1s
Dynamic range105db
Output interfaceHDMI 1.3
ControlPWM, serial port
Controllable rotational rangeRoll: +/-39°
Tilt: -125°~+125°
Transmitter frequency328~352MHz/ 560~700MHz( Customizable)
Image clearnessHD1080i/p
Image delayLowest 260ms
Weight<= 1.27kg
Dimension163mm*154mm*230mm


Integrated Ground Station System SPELL-IG

The Integrated ground station system is a multi-function system integrated with high-definition image receiving & display, data transmission link and multi-function ground station. Using the SPELL series, aircraft can easily achieve FPV flight and control.
Features
1. Ground station system using Intel i5 processor,
powerful performance and smooth operation;
2. High-luminance screen, low reflectivity, visible in direct
sunlight without the need for lens hood;
3. Features track ball keyboard and high-precision electromagnetic stylus, easy operation;
4. Built-in 900 MHz radio module with automatic frequency hopping, effectively avoids interference;
5. Simultaneous airborne HD transmitter image receiving
and screen display;
6. HDMI video output, external connection with large screen display;
7. Local video recording;
8. Portable suitcase structure, equipped with tripod, small size and simple packing & transportation;
9. High-gain antennas for longer distance image and data transmission; easy to control.

Technical Parameters

ModelWhole Machine
Ground station board CPUUav Drone Manufacturer Unmanned Aerial Vehicles with 30 Times HD Zoom Camera for Surveillance
Intel I5
Storage 8GB
Digital radio Frequency range FH 902-928 MHz
Power output 1W
Receiving sensitivity≤-98 dBm @115200bps
Bit rate 115200 bps
Image receiving Frequency range 170 MHz-860 MHz
Rx sensitivity ≤-92 dBm @8 Mbps
≤-98 dBm @2 Mbps
Bandwidth 2/4/6/7/8 MHz optional
Output interface USB2 Unit
HDMI 1 Unit
Display screen 10.1-inch LCDAnti Glare Screen
Battery time>2 HRS
Operating environment -20° ~ 70°

 Package for reference
 Uav Drone Manufacturer Unmanned Aerial Vehicles with 30 Times HD Zoom Camera for Surveillance

Uav Drone Manufacturer Unmanned Aerial Vehicles with 30 Times HD Zoom Camera for Surveillance
