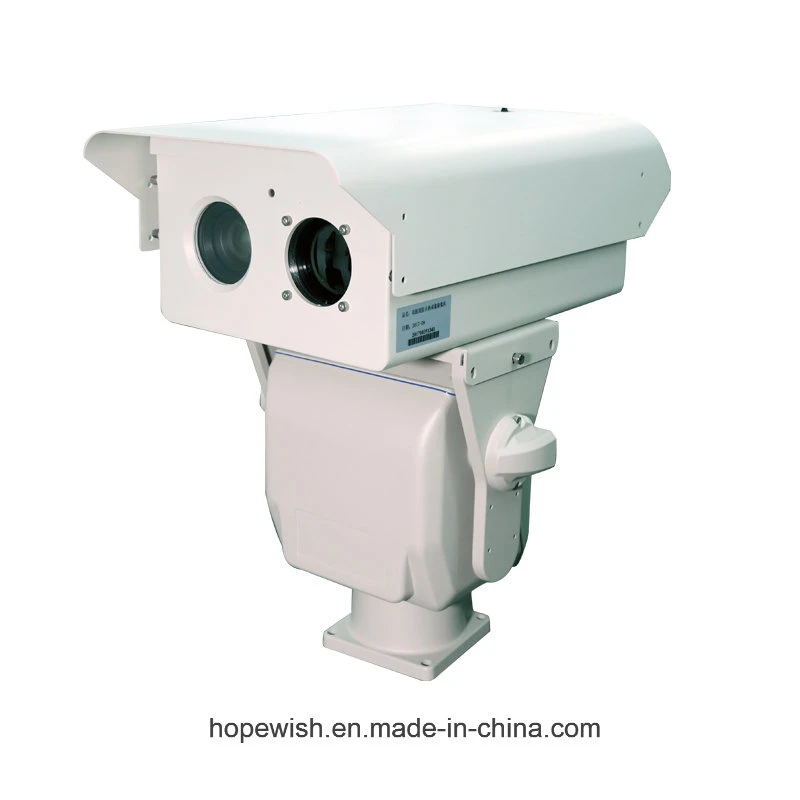

TVC Long Range Multi-Sensor Thermal Camera
Thermal PTZ IP Imager Video WiFi Camera Boat Car Fixed Mounting


TVC Long Range
Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2 mega pixel visible camera and 336*256/640*512 uncooled thermal camera with large caliber. In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-10km.

With built-in technical grade control electronic system, the camera's functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rates, which ensures camera´s normal operation under tough weather conditions.

Feature
  1. 4.3mm-129mm/8-320mm/15-528mm visible camera, 2 mega pixels CCD, 1-10km detection range in the daytime.
  2. 25-75mm/21-105mm/31-155mm thermal camera, 336*256/640*512 resolution, 1-10km detection range at night.
  3. 50mk NETD produces crisp thermal image under all weather conditions.
  4. Fog penetration (optional), optical filtering and DSP image processing.
  5. PT with 30kg/50kg load duty and 360 degree rotation.
  6. IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.

Application
City safety, oilfield safety, railway security, night gathering evidence.

Technical specification

ModelTVC4307A-1930-IP-STVC4511A-2132-IP-STVC4516A-2050-IP-S
DetectionVehicle: 6500mVehicle: 8600mVehicle: 13000m
 Human: 2500mHuman: 3400mHuman:4800m
IdentificationVehicle: 1800mVehicle: 2400mVehicle: 3400m
 Human: 700mHuman: 900mHuman: 1300m
Thermal sensorVOx uncooled detector, 324*256(640*512 optional) / 7.5um-14um spectral response, 50mk NETD
Thermal lens25mm~75mm21mm~105mm31mm~155mm
1. Electric zoom and focus (option auto focus)
Fov(H)13°~4.3°18°~3.4°11.2°~2.2°
Image process2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Visible sensor1/2.8'' CMOS1/1.8'' CMOS
0.01lux color to B/W CCD0.0002lux super high sensitive color to B/W CCD
2.1MP ,1920X10802 megapixels,1920X1080
Automatic ICR switchAutomatic ICR switch
H.264/MPEG4/MIPEGH.264/MPEG4/MIPEG
Visible lens4.3mm~129mm8~320mm15~528mm
Electric zoom and focusinfrared correction/ motorized zoomsuper aperture/ motorized zoom
Electric zoom and focusauto apertureauto aperture
Fog filterNoAFR color fog filter technology
Housing
  1. Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
5.  Interface:Aviation waterproof plug
PTZLoad:30kgLoad:50kg
Range:Pan: 0~360°, Tilt: +40°~-45°Range:Pan: 0~360°
Tilt: +40°~-45°
Speed:Pan: 0.01~30°/S, Tilt: 0.01~15°/SPan: 0.01~30°/S
Tilt: 0.01~15°/S
Preset: 80, with Petrol/scan function
Azimuth real-time display, Zero correction function
InterfaceIntelligent IP box,one 110M/100M adaptive Ethernet port (include thermal+HD visible+RS485),1* AC24V/DC24V adapter
Video formatH.264, Dual video output
ProtocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol
Support ONVIF2.0
Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional
Power supplyAC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply (Optional DC12V)
Environment
  1. Operating temperature:-25ºC~+55ºC(-40ºC optional)
  1. Storage temperature:-35ºC~+65ºC
  1. Humidity:<90%
  1. Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V
  1. Ingress protection:IP66
Weight≤25kg≤30kg≤50kg
