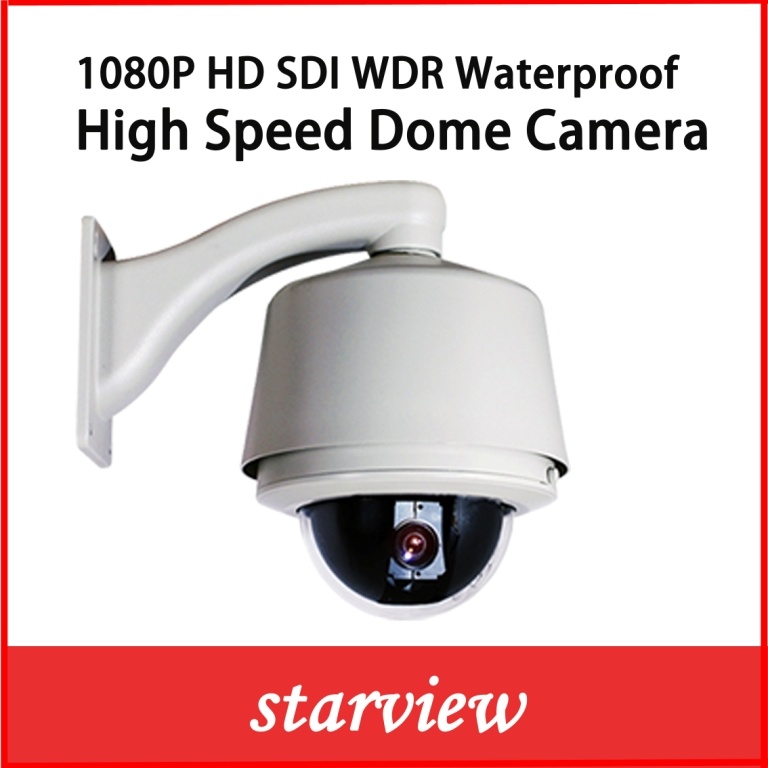

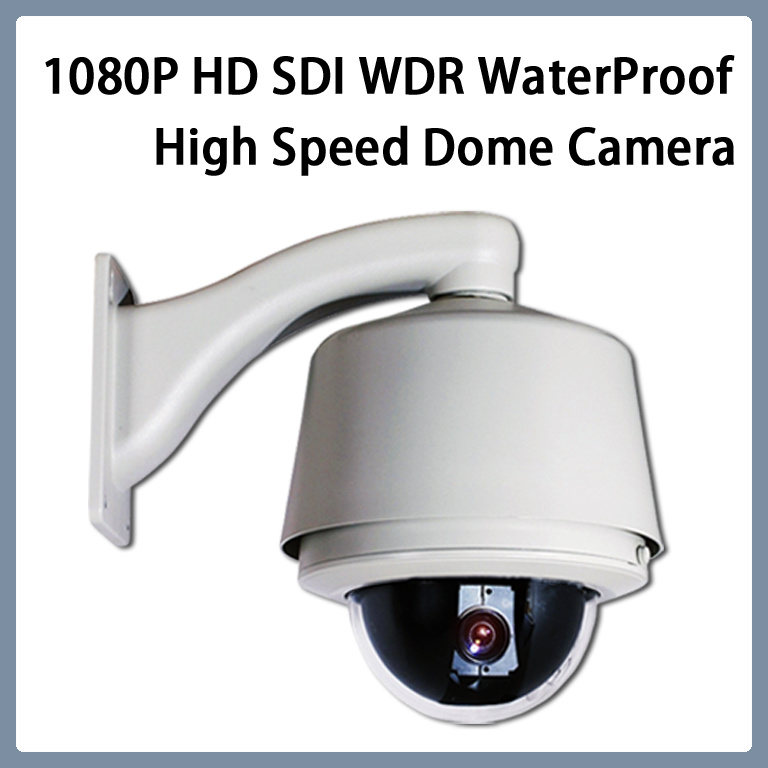

HD-SDI High speed dome camera
Uncompressed Images
Broadcast Quality transmission over
Coaxial Cable(No Networking Required)
OSD Menu
Pan: 0° ~ 360° , Tilt: 0° ~ 90°
Pan speed: 0.1° ~ 180° /sec
255, Preset accuracy ± 0.1°
4 sequences(each 32 presets)
Pattern 8 (each>180s)
3000V lightning & surge proof
IP66 all-weather cover
1080P Digital Image
HD-SDI Output Interface
Uncompressed Images
Broadcast Quality transmission over
Coaxial Cable(No Networking Required)
Sony FCB_EH6300 Module
1/3" "Exmor" CMOS
20X Optical Zoom, 12X Digital Zoom
Minimum Sensitivity: 0.5 lx
Uncompressed Images
Broadcast Quality transmission over
Coaxial Cable(No Networking Required)
OSD Menu
Pan: 0° ~ 360° , Tilt: 0° ~ 90°
Pan speed: 0.1° ~ 180° /sec
255, Preset accuracy ± 0.1°
4 sequences(each 32 presets)
Pattern 8 (each>180s)
3000V lightning & surge proof
IP66 all-weather cover
1080P Digital Image
HD-SDI Output Interface
Uncompressed Images
Broadcast Quality transmission over
Coaxial Cable(No Networking Required)
Sony FCB_EH6300 Module
1/3" "Exmor" CMOS
20X Optical Zoom, 12X Digital Zoom
Minimum Sensitivity: 0.5 lx
| Item Number | SV90-20SAP1A-SDI |
| Optical Zoom | 20X(FCB-CH6300 HD) |
| Image sensor | 1/3" 2.0MP"Exmor"CMOS |
| Scan Method | Progressive |
| Horizontal Resolution | 1920*1080 |
| Min. Illumination | Normal mode_1.7lx,High sensitivity mode_0.5lx |
| Focus | f=4.7 mm~94.0 mm |
| Digital Zoom | 12X |
| Pan Angle | 55.4°~2.9° |
| IR-CUT | Auto/ON/OFF |
| Focus | Manual/Auto |
| BLC | ON/OFF |
| WDR | ON/OFF |
| White Balance | Auto/ Manual |
| AGC | Autos |
| Signal Format | NTSC/PAL |
| SNR | More than 50dB |
| Motion Detect | OFF/ON |
| Privacy Mask | Support |
| PTZ Function | |
| Max. Horizontal Speed | 320°/S |
| Max. Verticality | 280°/S |
| Speed | |
| Preset | 256 |
| Pattern | 8(each line recording more than 180s) |
| Auto Scan | 8 |
| Tour | 8(32 presets/tour) |
| Match Scale | Support |
| Outrage Memory | Support |
| Alarm | 4in/1out |
| Fix Time | Support |
| Communication | RS485/RS422 |
| Video Output Bandwidth | The highest of transmission bandwidth 1.5Gbps |
| Video Frequency Frame rate | 25,30,50,60 |
| Other specification | |
| Operation temperature | 0°C~50°C ( Indoor), -30°C ~+65°C (Outdoor) |
| Environment Temperature | 0~95%RH(no condensation) |
| Protection | IP66protection, Built-in 3000V lighting-proof, vandal-proof, all day cover protection. |
| Power | DC24V/3A |
| Power | 15W(Indoor), 50W(Outdoor) |
| Weight | 5.5KG |
| Package Dimension | 30cm*30cm*47.5cm |
