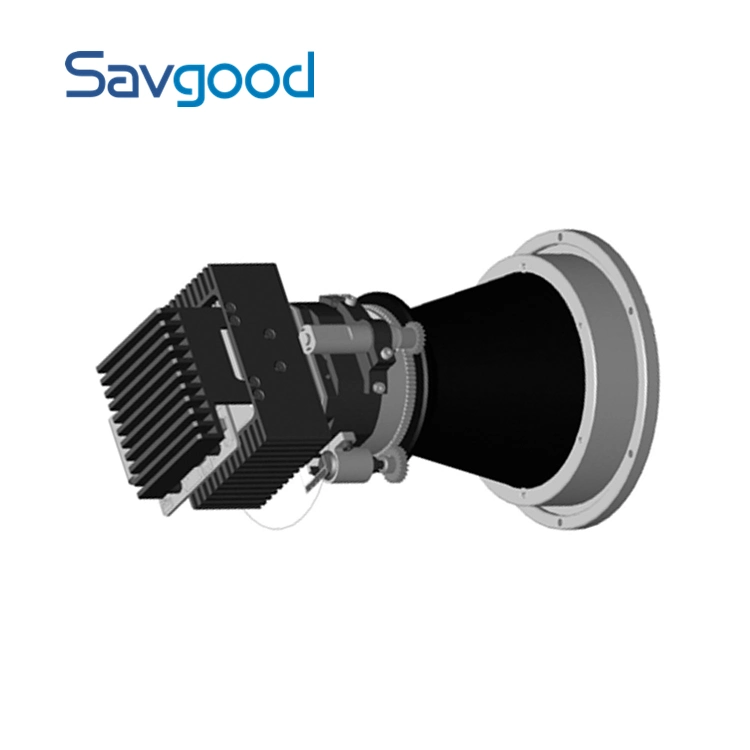

Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module
1.Model

SG-TCM03N-M75

-384x288 Thermal Network Camera Module with 75mm Lens



Features

> 384x288 Resolution, high sensitivity sensor

> 17um Pixel pitch.

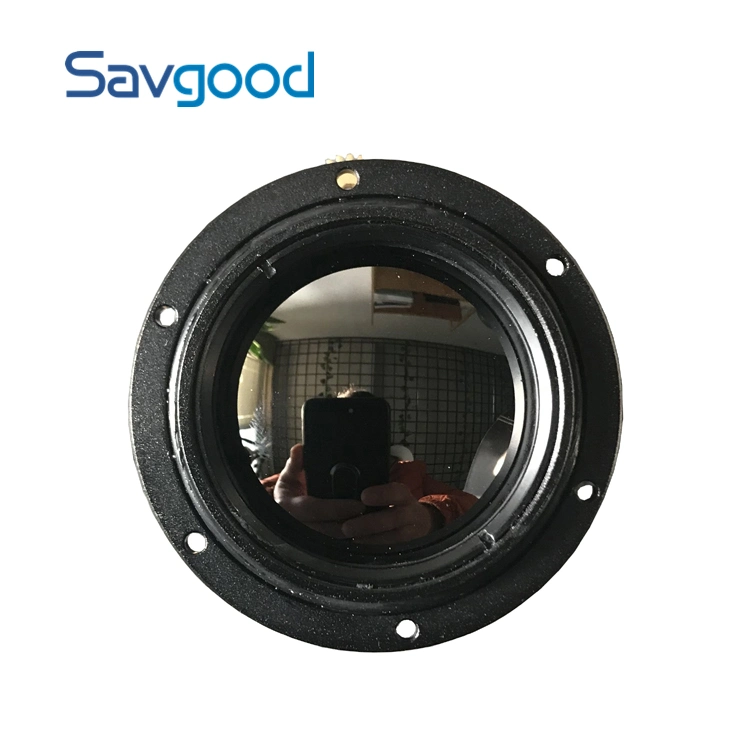

> 75mm Thermal Lens

> Support fast Auto Focus

> Support various IVS functions

> Modular design, better to do function extension

2. Specification
ModelSG-TCM03N-M75SG-TCM06N-M75
SensorImage SensorUncooled Microbolometer FPA(Amorphous silicon)
Resolution384 x 288640 x 480
Pixel Size17μm
Spectral Range8~14μm
LensFocal Length75mm
F Value1.0
Video NetworkCompressionH.265/H.264/H.264H
Storage CapabilitiesTF card, up to 128G
Network ProtocolOnvif, GB28181, HTTP, RTSP, RTP, TCP, UDP
Smart AlarmMotion Detection, Cover Alarm,Storage Full Alarm
Resolution50Hz: 25fps@(384x288)50Hz: 25fps@(640x480)
IVS FunctionsSupport intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection.
Power SupplyDC 12V±15% (Recommend: 12V)
Operating Conditions(-20°C~+60°C/20% to 80%RH)
Storage Conditions(-40°C~+65°C/20% to 95%RH)
Dimensions(L*W*H)Approx. 179mm*101mm*101mm (Included 75mm Lens)
WeightApprox. - g (Included 75mm Lens)

3.Dimension
Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module

Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module

Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module


4. IVS (Intelligent Video Surveillance)
Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module

4. VS Others
Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module

5. Application Solution
Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module

6. Packing

Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module


7. Company
Savgood Uncooled Microbolometer Infrared 75mm Lens Network Thermal Camera Module
