Features:

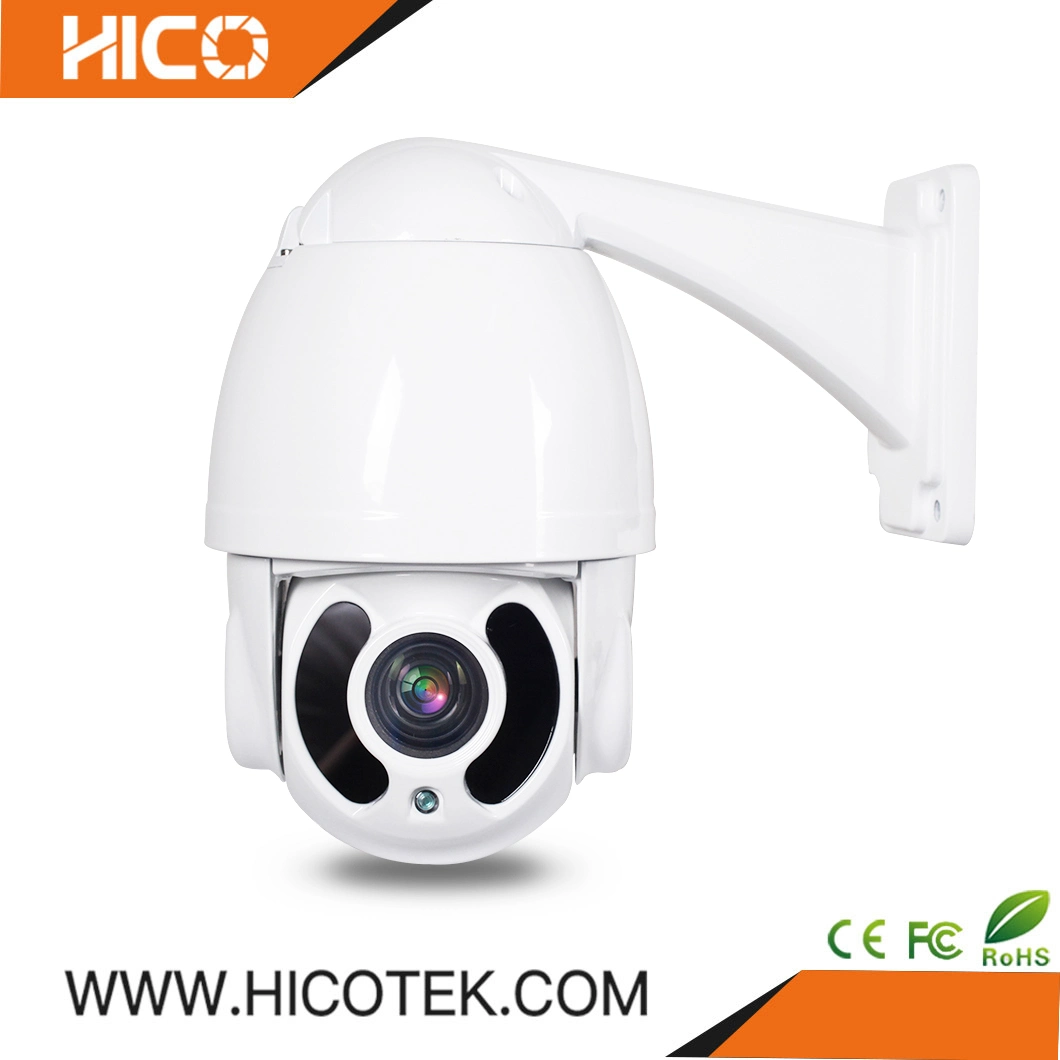

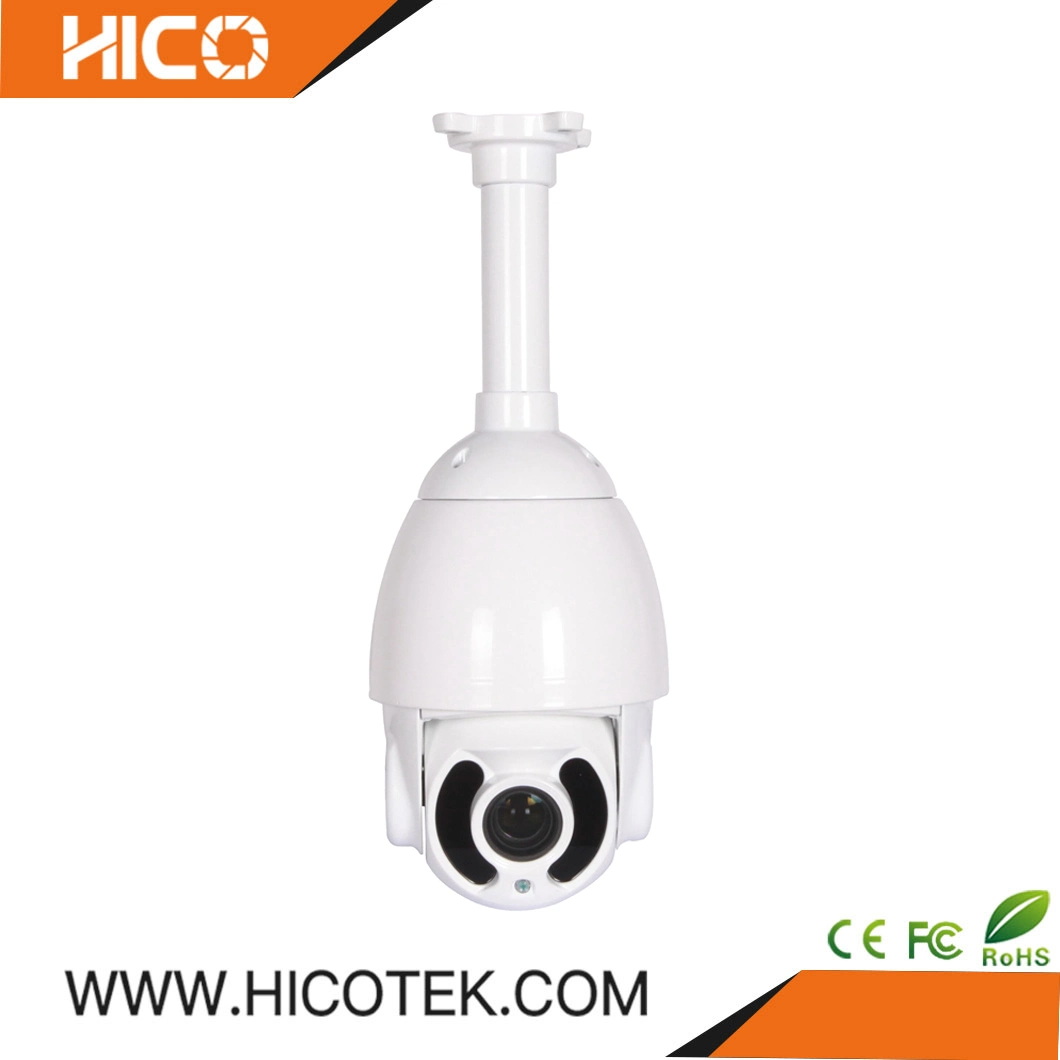

Metal Dome IR PTZ Camera
5.0 Megapixel HD Sony Starvis CMOS Sensor
AHD/TVI/CVI/CVBS output
5-50mm (10xZoom) Lens
IR LED:6pcs IR Array
IR Range: 80M
Water Resistant Rate:IP66
Metal Dome IR PTZ Camera
5.0 Megapixel HD Sony Starvis CMOS Sensor
AHD/TVI/CVI/CVBS output
5-50mm (10xZoom) Lens
IR LED:6pcs IR Array
IR Range: 80M
Water Resistant Rate:IP66
| Chipset | |
| Image Sensor | HD Sony Sensor |
| Horizontal Resolution | 5MP |
| TV System | PAL/NTSC |
| S/N Ratio | ≥50dB |
| Lens | |
| Focus Length | F=5-50mm |
| Focus Control | 10x Zoom |
| Pixels | 5M Pixels |
| Night Vision | |
| Infrared LED | IR LED: 6pcs IR Array |
| Infrared Distance | 80M |
| Auto Control IR LED | PWM |
| PTZ Features | |
| Pan Rotation Range | 0°-360° |
| Pan Rotation Speed | 45°/S (80°/S Optional) |
| Tilt Rotation Range | 0°~90° |
| Tilt Rotation Speed | 30°/S (40°/S Optional) |
| Auto Flip | Support |
| Preset Points | 220 of preset( Dwell Time 01-60s Interval Available) |
| A-B Scan Range | Support 0-355° |
| A-B Scan Speed | 1~9 Grades |
| Guard Tours | 3 Groups (Max.16 Points) |
| Communication Model | RS485 (+/-) / Coaxial Cable |
| General | |
| Housing | Metal, IP66 |
| Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -30ºC ~ +50ºC RH95% Max |
| Storage Temperature | -40ºC ~ +60ºC RH95% Max |
| Power Source | DC12V±10%, 1.5A |
| Power Consumption | ≤ 10W |
