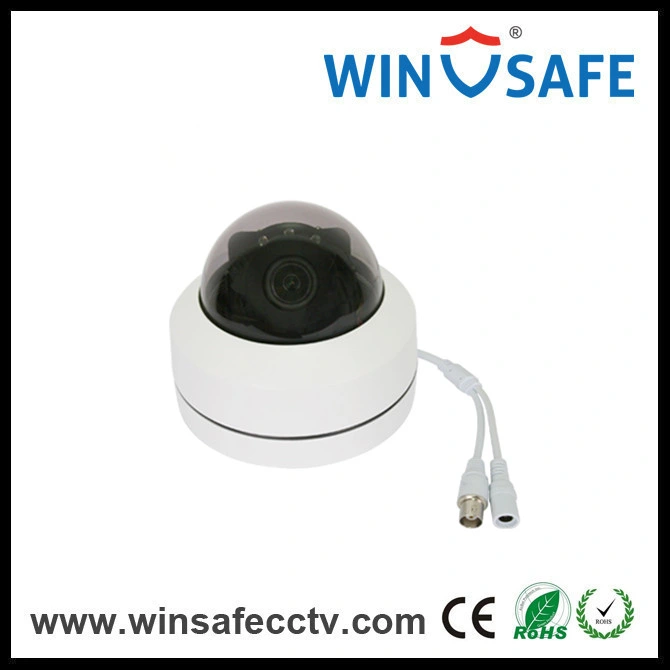

HD Mini IR Waterproof Dome Camera PTZ IP Camera
Product Overview:
1)2.0MP 1/3 Low illumination CMOS,3X optical zoom;
2)Support onvif protocol GB/T28281,work with Hikvision , dahua, XM
3)Support lightning protection, anti surge;
4)Outdoor speed dome camera protection grade:IP66;
5)Support Chinese and English IE interface and have operation tips function, user interface friendly
Information:
1)Adopt 3pcs infrared light, Effective exposure distance up to 20m
2)Horizontal rotation 355 ° continuous rotation, Vertical 0 ° -90 °, support automatic flip, no monitoring blind spot.
3)Pan speed max 25°/s,tilt speed max 20°/s
4)Pan speed 0°/s~25°/s,tilt speed 0°/s~20°/s,
5)Support 16 preset;1 patrols;1 patterns;support AB scan;
6)Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
7)Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity
Product Overview:
1)2.0MP 1/3 Low illumination CMOS,3X optical zoom;
2)Support onvif protocol GB/T28281,work with Hikvision , dahua, XM
3)Support lightning protection, anti surge;
4)Outdoor speed dome camera protection grade:IP66;
5)Support Chinese and English IE interface and have operation tips function, user interface friendly
Information:
1)Adopt 3pcs infrared light, Effective exposure distance up to 20m
2)Horizontal rotation 355 ° continuous rotation, Vertical 0 ° -90 °, support automatic flip, no monitoring blind spot.
3)Pan speed max 25°/s,tilt speed max 20°/s
4)Pan speed 0°/s~25°/s,tilt speed 0°/s~20°/s,
5)Support 16 preset;1 patrols;1 patterns;support AB scan;
6)Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
7)Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity
| Model No. | WS-A01-W/P | |
| Image Sensor | 1/2.9 CMOS | |
| Resolution | 1820 x 1080 | |
| Low illumination | Color: 0.2Lux @ F1.2; Black&White: 0.01Lux @ F1.2 | |
| Signal/Scan System | PAL/NTSC; Progressive | |
| Electronic Shutter | Auto/Manual(1/5 - 1/50,000s) | |
| Day&Night Mode | Auto ICR | |
| Optical Zoom | 2.8 - 8mm; 3X | |
| Pan Angle | 106.6° - 51.8° | |
| IR Distance | 20M | |
| Pan Speed | Horizontal Rotation 355° continuous rotation; 0° - 25°/s | |
| Tilt Speed | 0 - 20°/s | |
| Tilt Range | 0° - 90° | |
| Proportional zoom | Support, change the speed based on the zoom | |
| Preset | 16 | |
| Patrol | 1 | |
| Pattern Scan | 1 | |
| A.B Scan | Support | |
| Park function | Support, preset, cruise, pattern scan, two-point line sweep, horizontal automatic | |
| Max. image size | 1920 x 1080 | |
| Output bit rate | 32Kbps - 16Mbps | |
| Video Compression | H.264/MJPEG | |
| Network Protocol | TCP/IP, HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE, SMTP,NTP,UPnP | |
| Interface Protocol | Onvif, Hikvision, XM, Jovision Personal Protocol | |
| Network Interface | Built in RJ45 network interface, support 10M/100M IP DATA | |
| Application Interface | Provide Linux, NindoNs SDK develop bag and CGI protocol, can be second fast developed | |
| Browser | Support IE7, IE8,IE9, Chrome8+, Firefox3.5, Safari5+ | |
| PTZ Control Protocol | Pelco-D,Pelco-P, HIKVISION, DAHUA | |
| Power Consumption | DC12V/1A, 10W(Max) | |
| Working Team and Hum | - 20°C - 60°C, below 90%RH(no frostless) | |
| Protection Grade | TVS3000V lightning protection, surge protection and voltage transient protectioin, weather proof(for outdoor): IP66 | |
