1. Product features

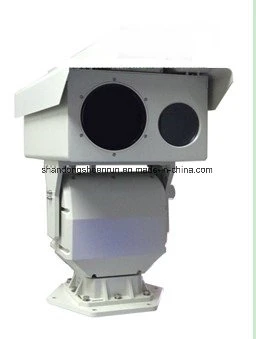

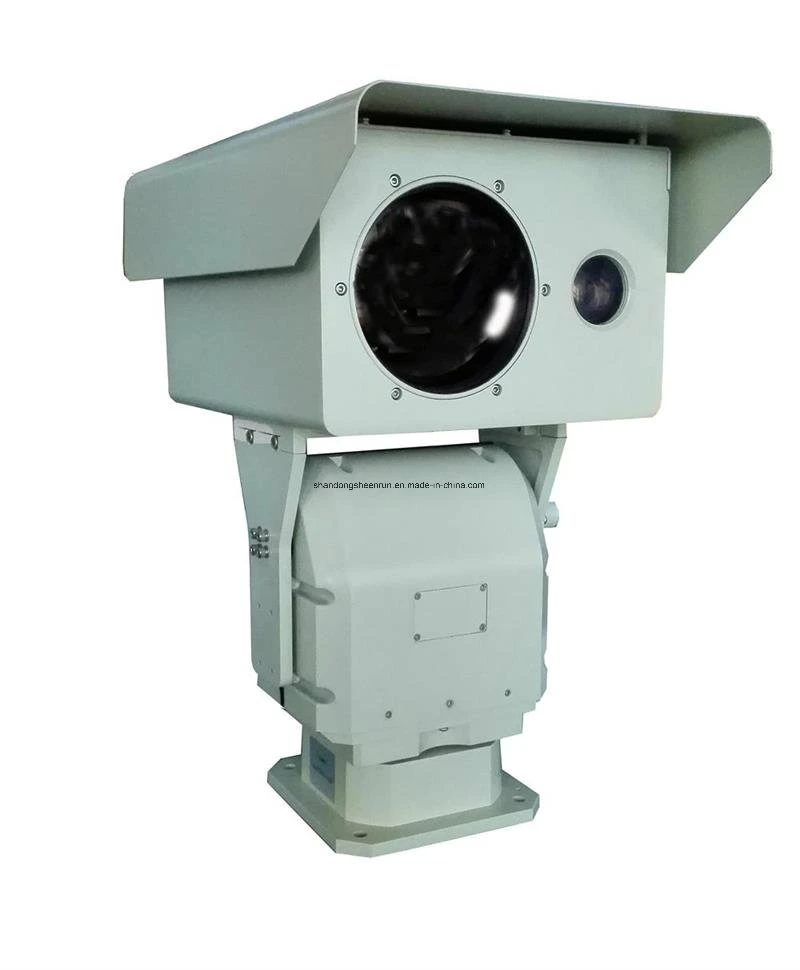

*Integrating infrared thermal imaging, visible light camera and pantilt controlling system, realizing day and night omni-directional monitoring
* Adopting thermal imaging technology, not limited by light source, imaging clearly
* Day and night 2 megapixel low illuminance color camera, realizing details observing
* High intelligence, simple to operate, easy to use and maintain
*3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability
*Universal variable speed pan-tilt, realizing omnidirectional no blind angle monitoring and high precision locating
*Visible light can detect human for 3.5km;thermal camera can detect human for 4.2km and vehicle 12km.
2. Main Use
Frontier and coast defense,Military/Police,Border defense,Oilfields,Railway,Airports,Harbors,
Armored monitoring,large areas real-time monitoring day & night.
3. Technical Indicators
| Detection distance | Visible light | 3000m | ||
| Thermal imaging | object | human(1.8m×0.5m) | vehicle(2.3m×2.3m) | |
| Detection distance | 3600m | 9900m | ||
| Recognition distance | 900m | 2470m | ||
| Identification distance | 540m | 1200m | ||
| High definition lens | Focal length | 15.6~500mm | ||
| FOV | 0.8°~24.7° | |||
| Double lens | supporting(optional) | |||
| Fog penetration | supporting(optional) | |||
| Auto focusing | supporting(optional) | |||
| Camera | Sensor type | 1/2''Progressive Scan CMOS | ||
| Coding format | H.264/MJPEG/MPEG4 | |||
| Video resolution | 1080P,CIF,supporting three stream | |||
| Video bit rate | 32Kbps~16Mbps | |||
| Video frame rate | 1~25F/S(50Hz),1~30F/S(60Hz) | |||
| Infrared lens | Focal length | 30~150mm | ||
| FOV | 3.1°×2.4°~15.2°×12.2° | |||
| F value | F1.0~F1.2 | |||
| Lens control | electric zooming, electric focusing, auto focusing(optional) | |||
| Spatial resolution | 0.69~0.14mrad | |||
| Detector | Detector type | uncooled microbolometer focal plane array(VOX) | ||
| Effective pixels | 324×256 | |||
| Spectral range | 8~14μm | |||
| Temp sensitivity | ≤50mK@F1.0,300K | |||
| Frame rate | 25Hz | |||
| Image processing | DDE, pseudo color | |||
| Pan-tilt | Carrying capacity | 50kg(top load) | ||
| Angle | Horizontal 360°continuous rotation,pitching -60°~+20° | |||
| speed | Horizontal 0.01°~12°/s,pitching 0.01°~8°/s | |||
| Preset bit | 255 | |||
| Auto cruising | 8 paths, 10 bits each path | |||
| Auto scan | 1 path | |||
| Anti-lightning | 2000V | |||
| interface | Power supply interface | AC24V | ||
| Network interface | 1×10Base-T/100Base-TX,RJ45 | |||
| Video controlling interface | RS422communication, BNC video output | |||
| Environment indicators | Working temp | -25ºC~+55ºC | ||
| Storage temp | -40ºC~+65ºC | |||
| Protection grade | IP66 | |||
| Power supply | Whole machine power supply | AC24V±10%,appendant AC220V~AC24V/5A water proof power supply | ||
| Whole machine power consumption | ≤120W | |||
| Physical features | Installation method | Outdoor pedestal mounting | ||
3. Our Service
(1) We generally offer one year warranty. Extended warranty is also available.
(2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(3) We accept OEM.
(4) We offer customized product.
